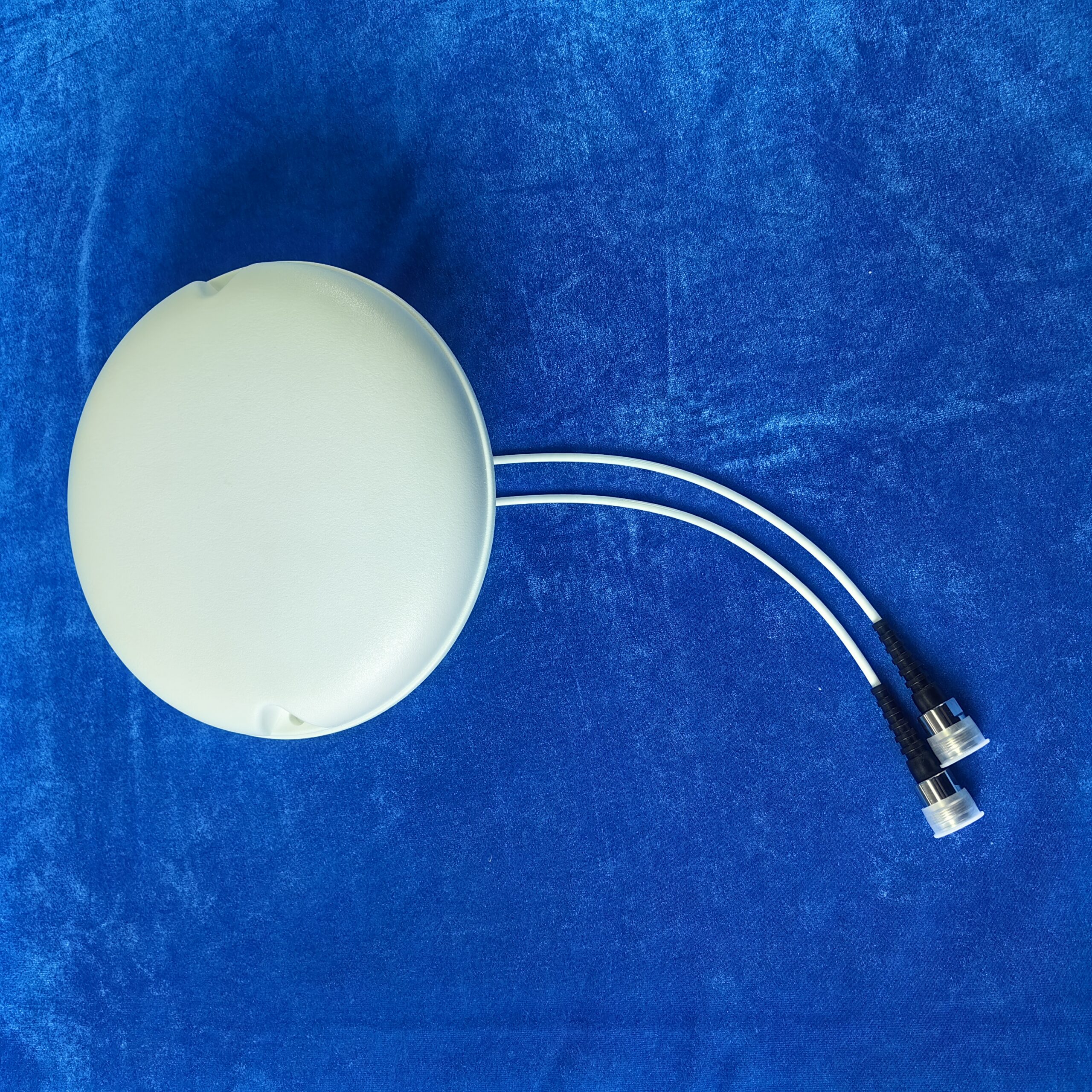

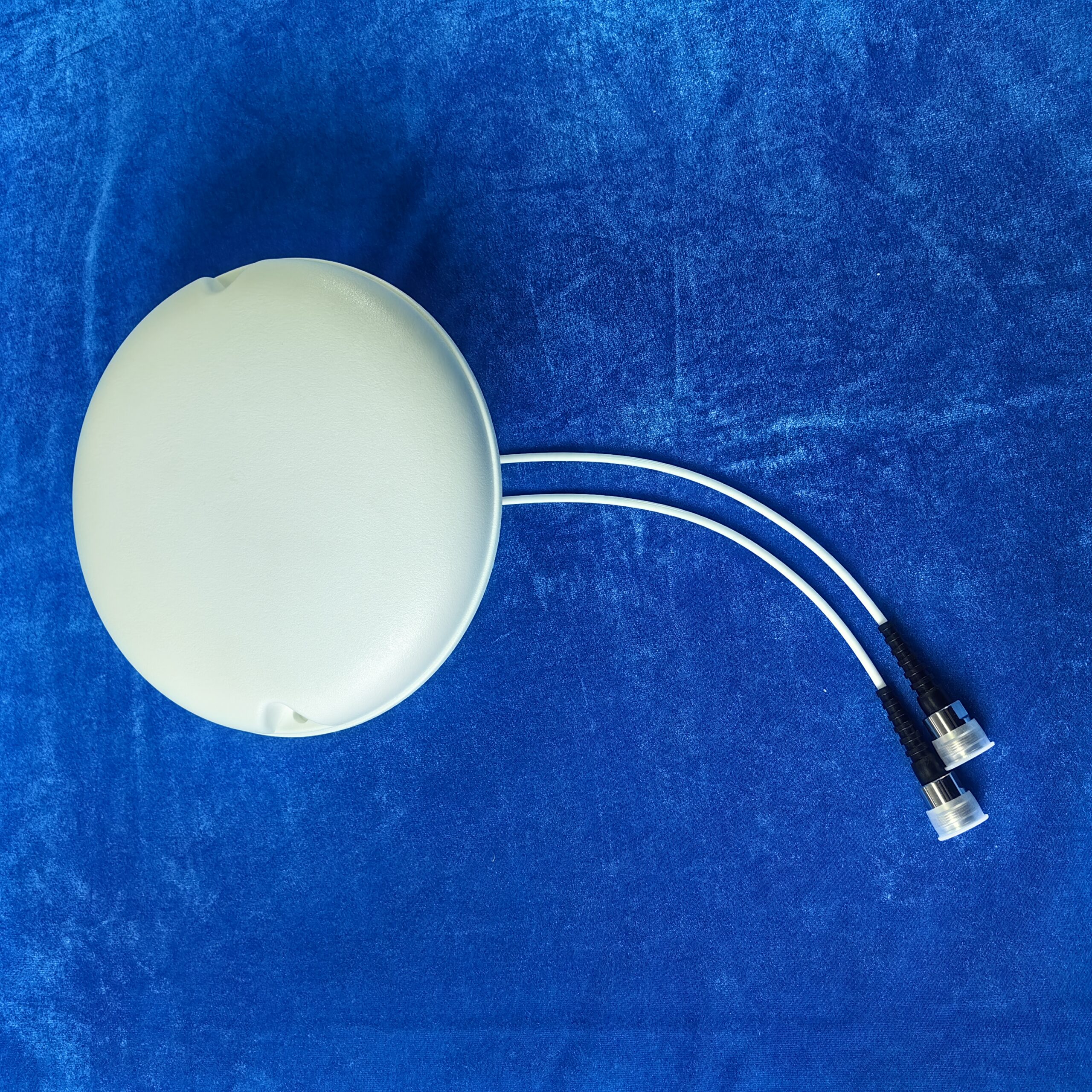

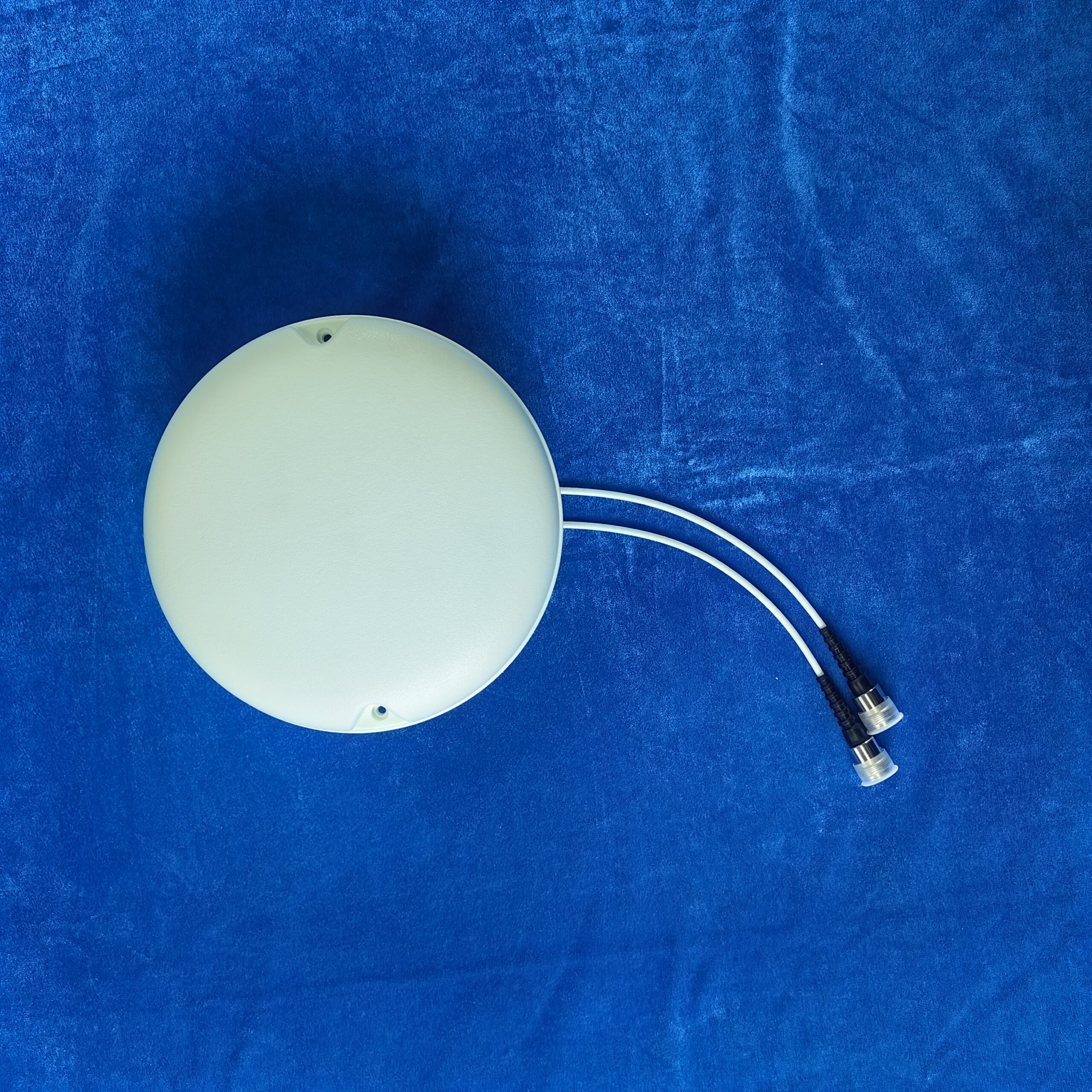

698~4200 MHz Two-Port Ultra-Wideband Ultra-Thin Omnidirectional Ceiling-Mounted Antenna
Product Model：TNQS22(822)-0742-L(H)
-
Phone: +86 15915954935
-
E-mail：Minglianwu@gmail.com
Inquiry
For technical inquiries about our products, catalog requests, specific consultations regarding our products, or any other inquiries, please fill in the fields below and click the “Confirm Input” button. A representative from our department will contact you shortly.
941
People watching this product now!
Description
Electrical performance indicators
| Frequency Range (MHz) | 698~960 | 1710~2700 | 3300~4200 |
| Polarization | Linear(Horizontal) x 2 | ||
| Gain (dBi) | 2.2 | 4.5 | 5.5 |
| VSWR | ≤1.8 | ||
| Isolation （dB） | ≥15 | ≥20 | ≥20 |
| （dBm)Intermoulation IM3 | ≤-107 (@2x43dBm 1800MHz) | ||
| Impedance （Ω） | 50 | ||
| Max CW input power(W) | 50 | ||
Mechanical properties
| Connector | 2 x 4.3-10 miniDIN female |
| Reflector Aperture（mm） | Φ218×42 |
| Weight of antenna(kg) | 0.36 |
| Color | 白 white |
| Operational temperature(℃) | -40～+60 |
| Protection grade | IP65 |
| Radome material | ABS |
| Mounting Type | Ceiling, via hole |
