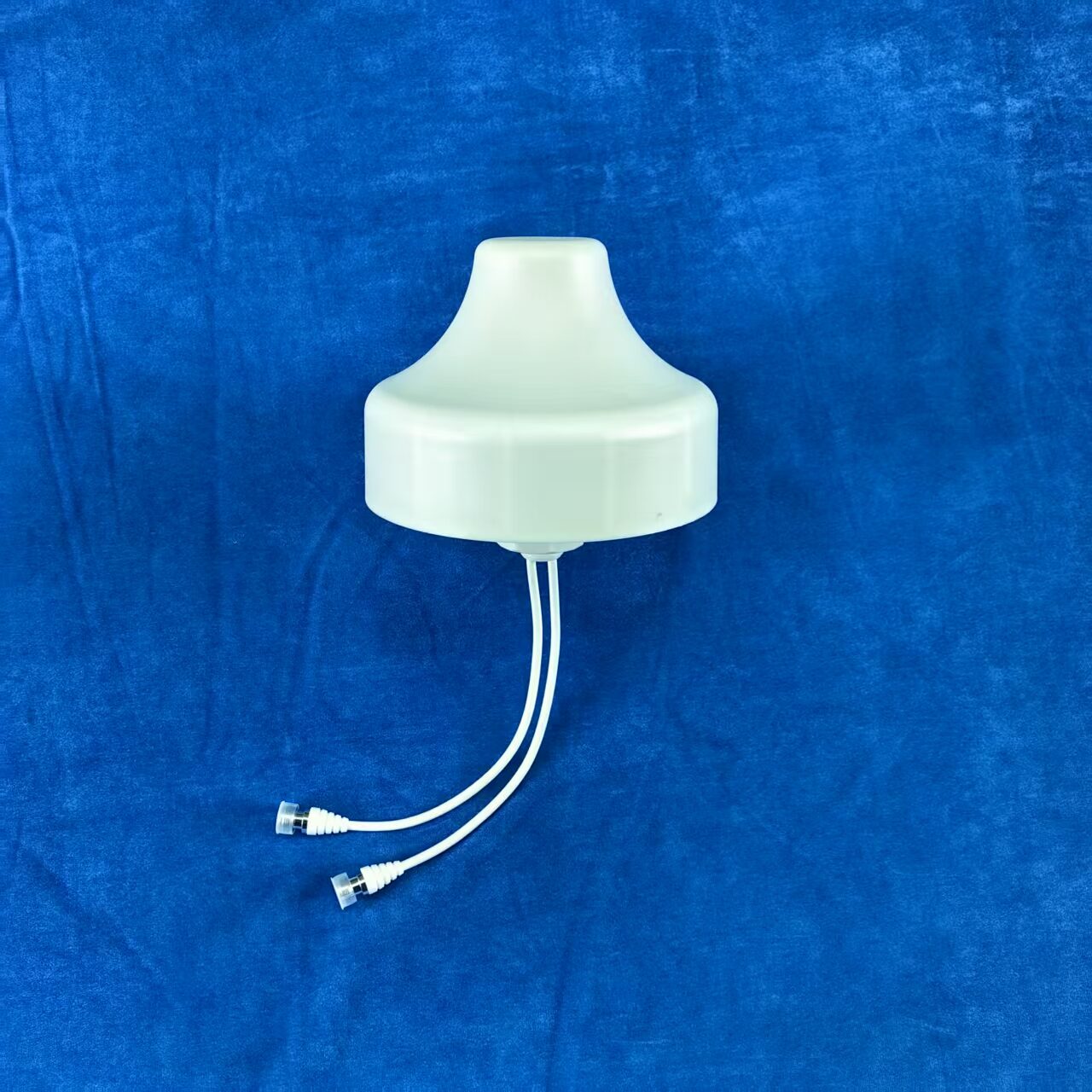

Dual-polarized ceiling antenna
Product Model: TNQS21(734)-0837
-
Phone: +86 15915954935
-
E-mail：Minglianwu@gmail.com
Inquiry
For technical inquiries about our products, catalog requests, specific consultations regarding our products, or any other inquiries, please fill in the fields below and click the “Confirm Input” button. A representative from our department will contact you shortly.
587
People watching this product now!
Description
Electrical Performance Parameters
| Port | Port1 | Port2 | ||||
| Frequency Range (MHz) | 806~960 | 1710~2500 | 3300~3700 | 1710~2500 | 3300~3700 | |
| Polarization | Vertical | Horizontal | ||||
| Gain (dBi) | 2 | 3.5 | 3.5 | 2.5 | 2.5 | |
| Horizontal 3dB Beamwidth (°) | 360 | 360 | ||||
| Vertical 3dB Beamwidth (°) | 85 | 50 | 40 | 55 | 45 | |
| VSWR | ≤1.5 | |||||
| Isolation （dB） | / | ≥20 | ≥20 | ≥20 | ≥20 | |
| Intermoulation IM3 | ≤-107 (@2x33dBm 800MHz 2100MHz) | |||||
| Impedance （Ω） | 50 | |||||
| Max CW input power(W) | 50 | |||||
Mechanical Parameters
| Connector | 2×N-Female |
| Dimension of antenna(mm) | Φ180×128 |
| Weight of antenna(kg) | 0.4 |
| Color | white |
| Operational temperature(℃) | -40～+60 |
| Radome material | PS |
| Mounting Type | Ceiling, via hole |
