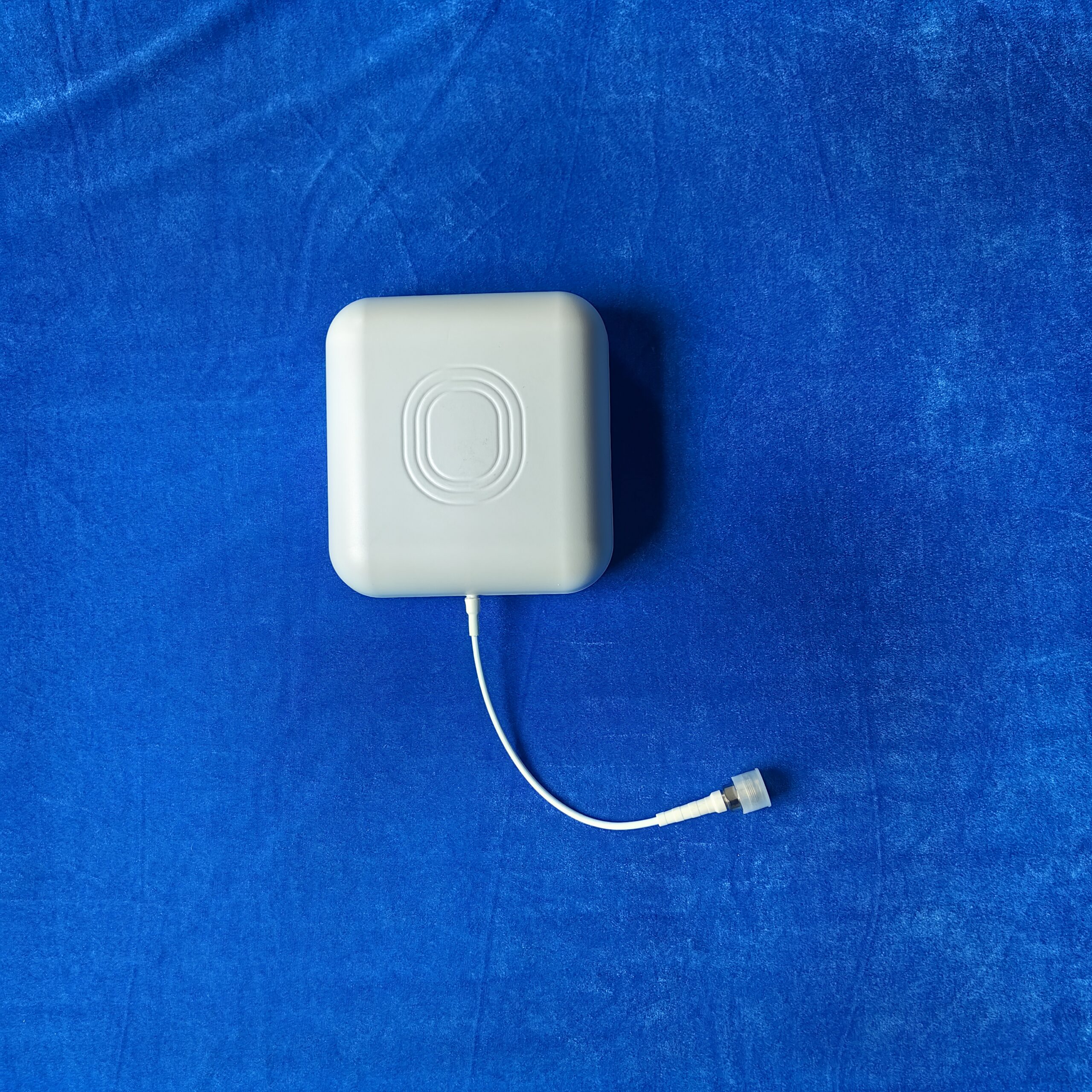

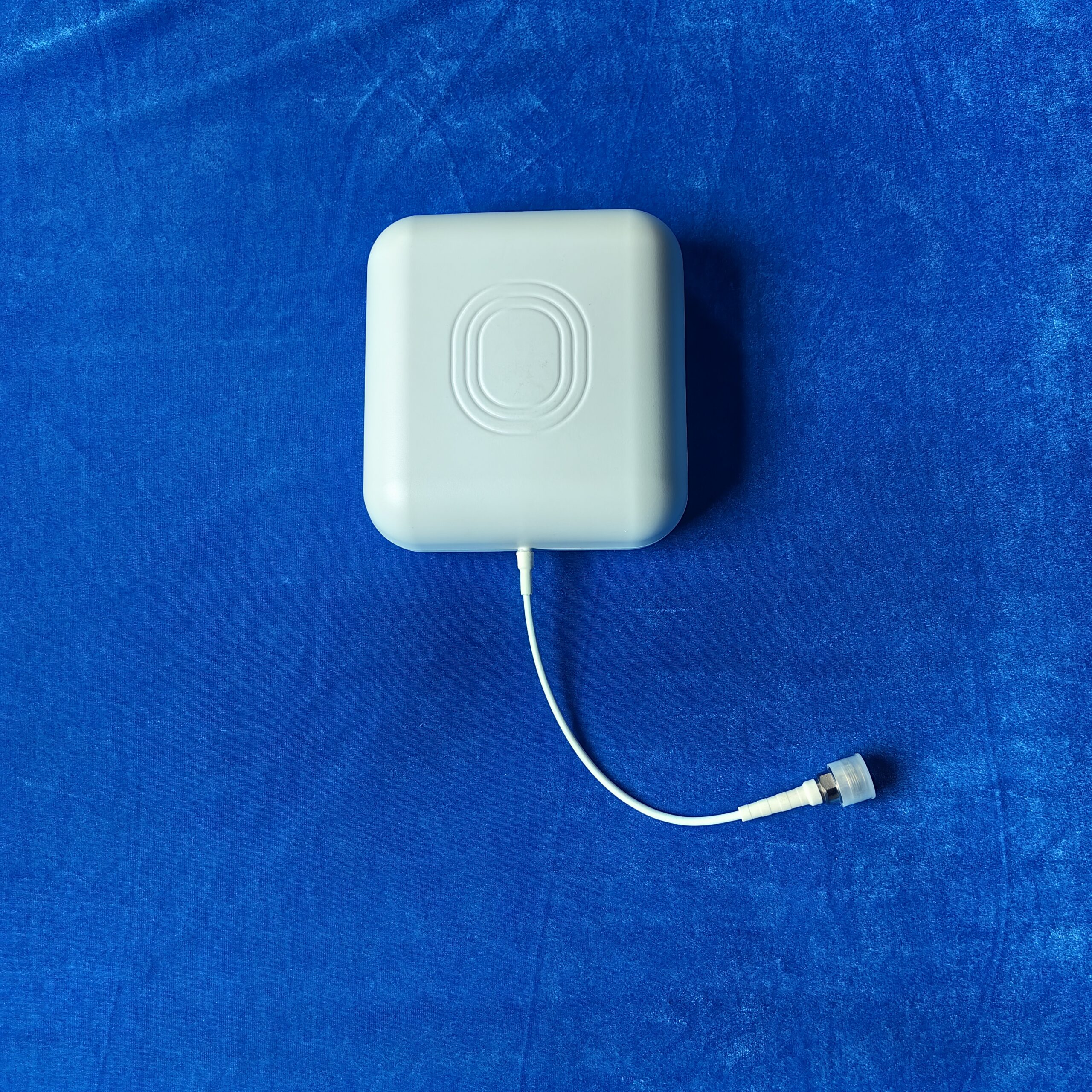

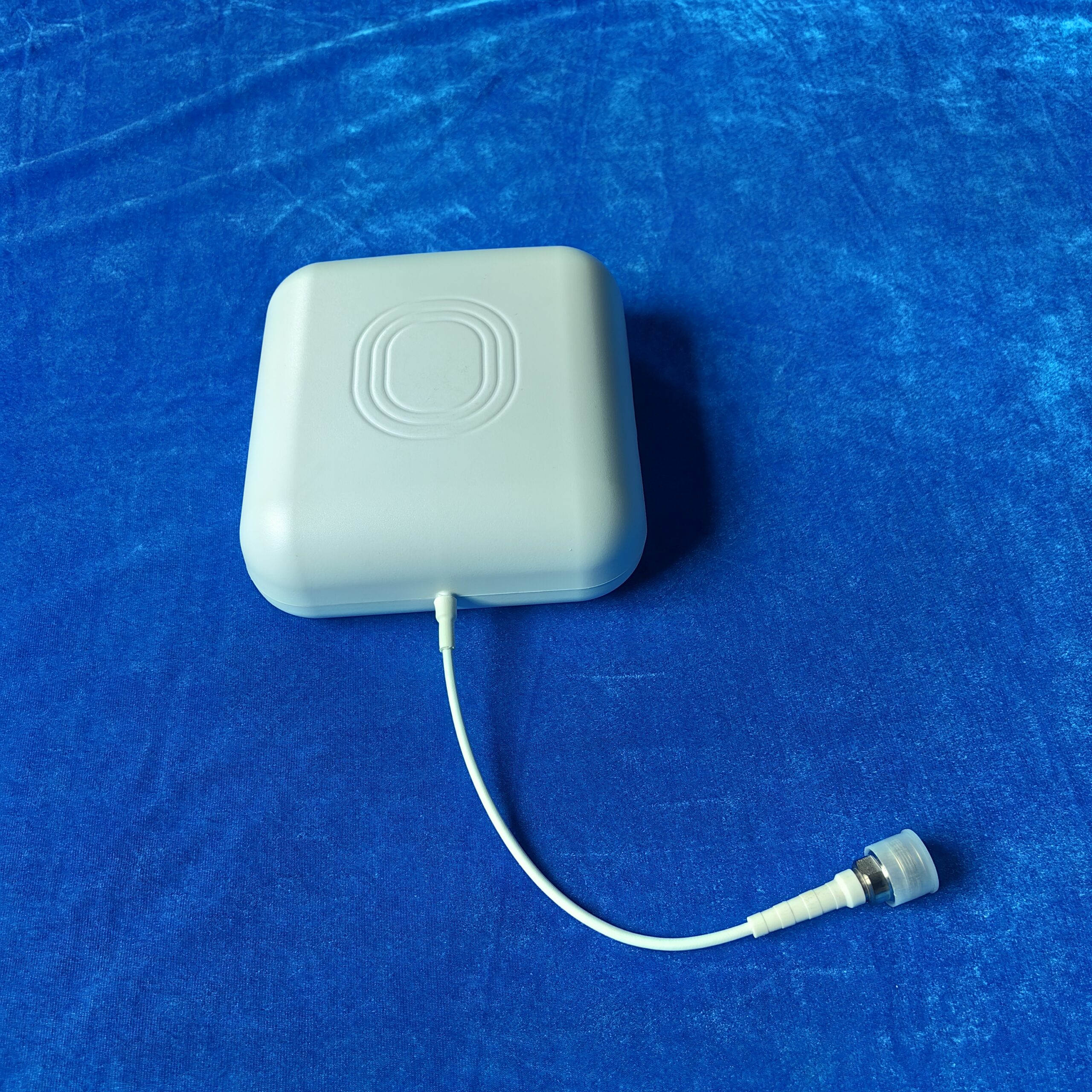

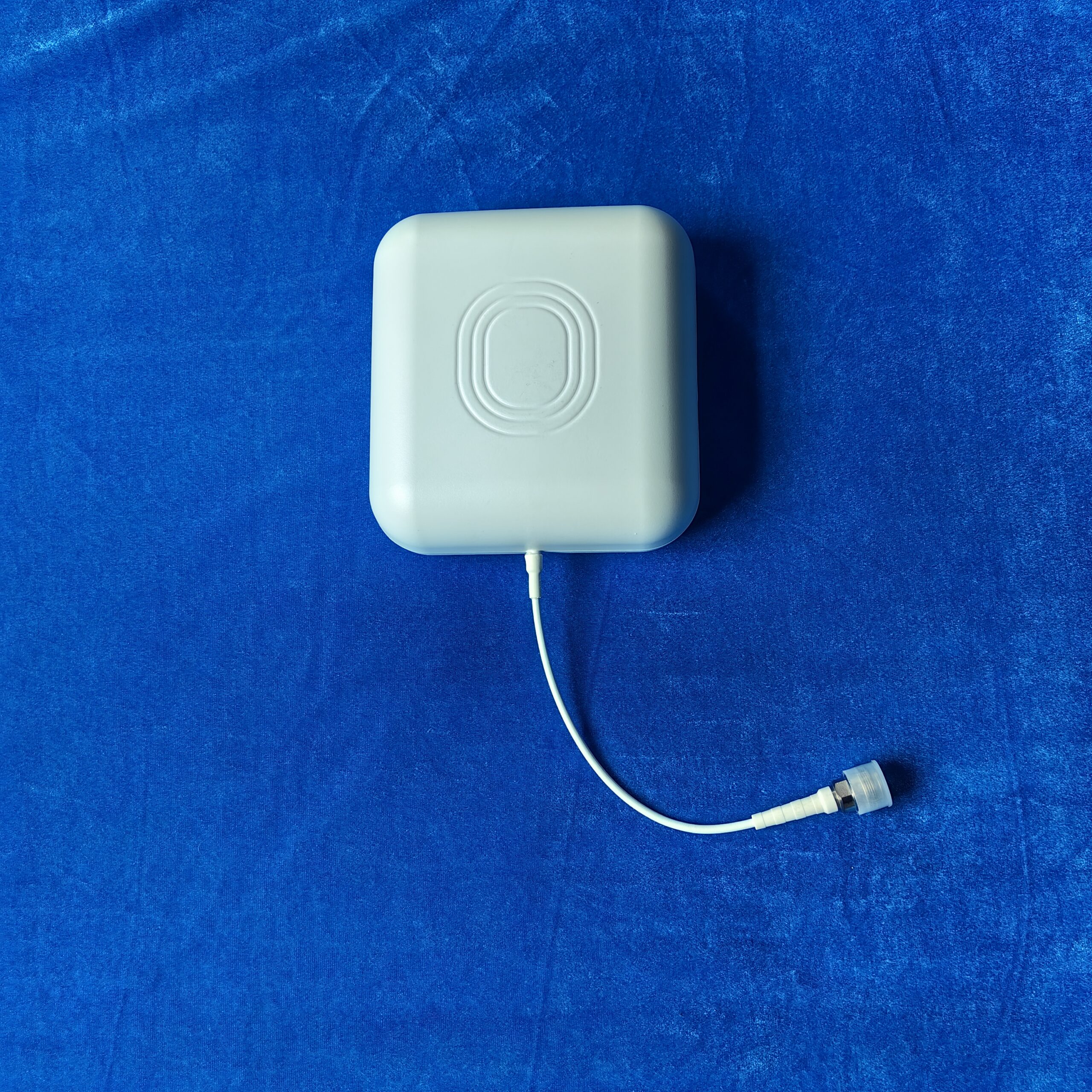

698-4200MHz Ultra-wideband Single-Polarization Wall-Mounted Antenna
Product Model: TNPS24(770)-0742-80/65/55-V-20W-8i
-
Phone: +86 15915954935
-
E-mail：Minglianwu@gmail.com
Inquiry
For technical inquiries about our products, catalog requests, specific consultations regarding our products, or any other inquiries, please fill in the fields below and click the “Confirm Input” button. A representative from our department will contact you shortly.
788
People watching this product now!
Description
Electrical performance indicators
| Frequency Range (MHz) | 698~960 | 1710~2700 | 3300~4200 |
| Polarization | Vertical | ||
| Gain (dBi) | 6 | 7 | 8 |
| 3dB Horizontal beam-width(°) | 80 | 65 | 55 |
| 3dB Vertical beam-width(°) | 70 | 60 | 35 |
| VSWR | ≤1.8 | ||
| （dBm)Intermoulation IM3 | ≤-107 (@2x43dBm) | ||
| Impedance （Ω） | 50 | ||
| Max CW input power(W) | 50 | ||
Mechanical properties
| Connector | 4.3-10 miniDIN female |
| Reflector Aperture（mm） | 175 x 165 x 60 |
| Weight of antenna(kg) | 0.35 |
| Color | white |
| Operational temperature(℃) | -40～+60 |
| Radome material | ABS |
| Mounting Type | On-wall |
