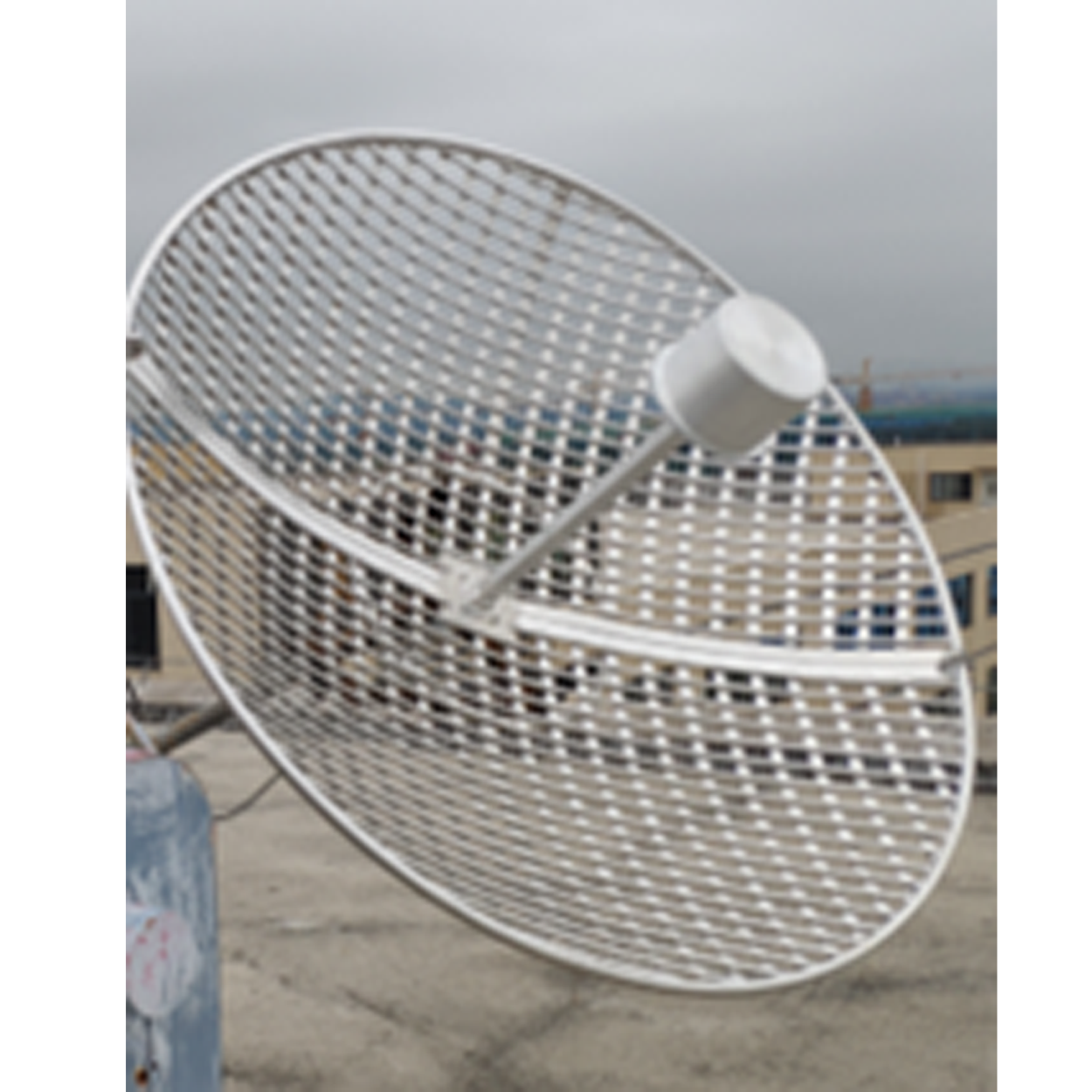

880-960MHz Parabolic Antenna (2 meters)
Product Model: TN-SPS20-0810D
-
Phone: +86 15915954935
-
E-mail：Minglianwu@gmail.com
Inquiry
For technical inquiries about our products, catalog requests, specific consultations regarding our products, or any other inquiries, please fill in the fields below and click the “Confirm Input” button. A representative from our department will contact you shortly.
938
People watching this product now!
Description
Electrical performance indicators
| Frequency Range (MHz) | 880~960 |
| Polarization | ±45 |
| Gain (dBi) | 23.5 |
| Horizontal 3dB Beamwidth (°) | 10 |
| Vertical 3dB Beamwidth (°) | 10 |
| Front-Back Ratio | ≥28 |
| VSWR | ≤1.8 |
| Isolation （dB） | ≥25 |
| Impedance （Ω） | 50 |
| （dBm)Intermoulation IM3 | ≤-107 (@2x43dBm) |
| Max CW input power(W) | 150 |
| Lightning Protection | DC ground |
Mechanical properties
| Connector | 2×7/16 DIN female |
| Connector position | Bottom |
| Reflector Aperture（mm） | Ф2000 |
| Weight of antenna(kg) | 37 |
| Color | Grey |
| Operational temperature(℃) | -40～+60 |
| Max. wind velocity (km/h) | 126 |
| Mounting Type | Pole Dia. Φ76-Φ114 mm |
Directional chart
