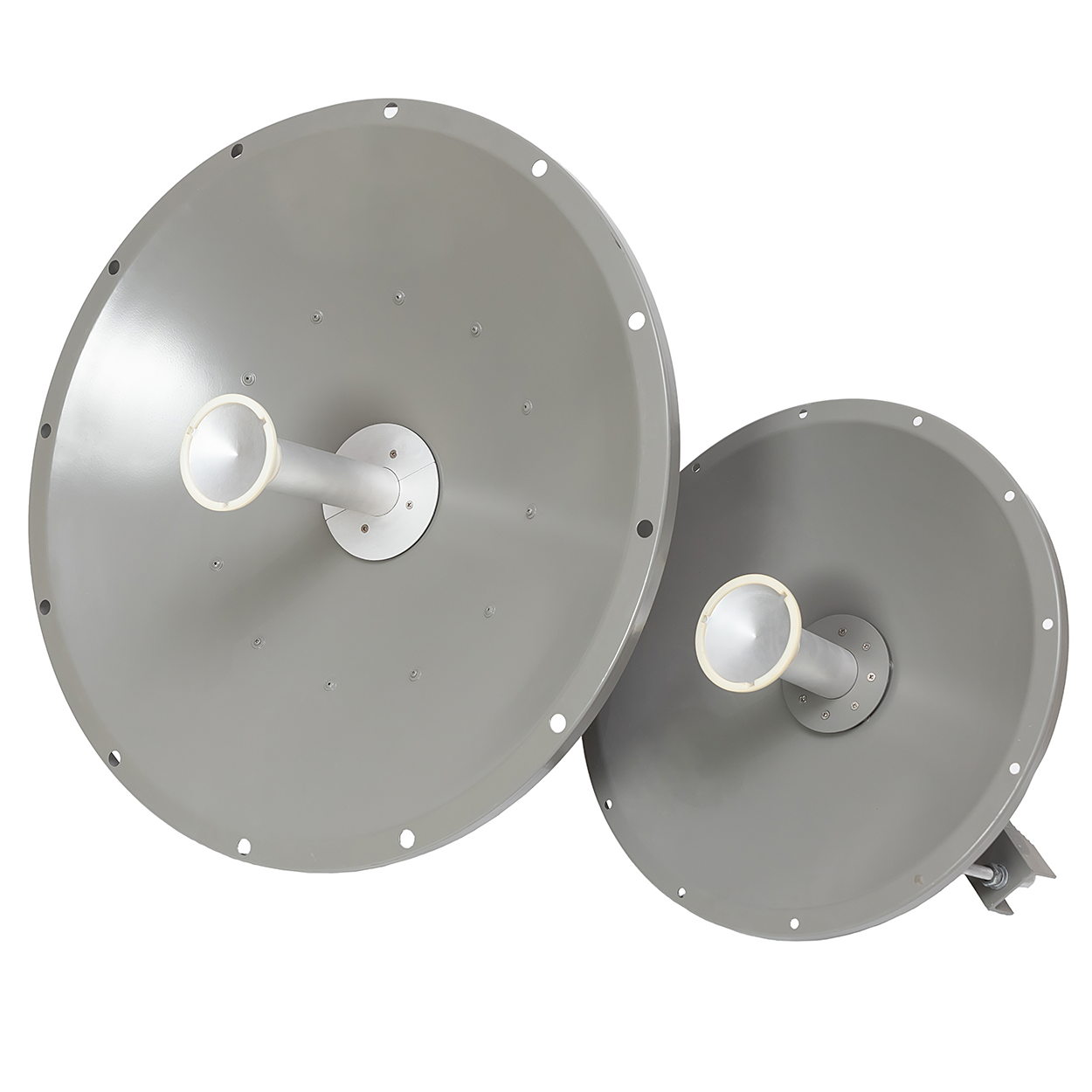

5150-5850MHz Dual-Polarized Parabolic Antenna (0.6m)
Product Model: TNP06-5159S
-
Phone: +86 15915954935
-
E-mail：Minglianwu@gmail.com
Inquiry
For technical inquiries about our products, catalog requests, specific consultations regarding our products, or any other inquiries, please fill in the fields below and click the “Confirm Input” button. A representative from our department will contact you shortly.
221
People watching this product now!
Description
Electrical performance indicators
| Frequency Range (MHz) | 5150~5850 |
| Polarization | （V/H） |
| Gain (dBi) | 28±1 |
| Horizontal 3dB Beamwidth (°) | 6 |
| Vertical 3dB Beamwidth (°) | 5.5 |
| Front-Back Ratio | ≥25 |
| VSWR | ≤1.8 |
| Isolation （dB） | ≥25 |
| Impedance （Ω） | 50 |
| Max CW input power(W) | 200 |
Mechanical properties
| Connector | 2 * N-Female |
| Connector position | Bottom |
| Reflector Aperture（mm） | Ф600 |
| Weight of antenna(kg) | 6 |
| Color | Grey |
| Operational temperature(℃) | -40～+60 |
| Protection grade | IP65 |
| Max. wind velocity (km/h) | 200 |
| Mounting Type | Pole Dia. Φ48-Φ70 mm |
Directional chart
